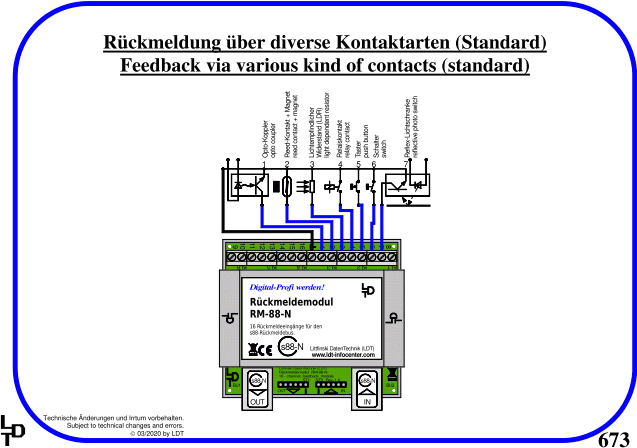

Sample-Connections: Feedback via various kind of contacts (RM-88-N and RM-88-N-O)

> To overview: sample connections sorted by digital command stations
> To overview: sample connections sorted by digital components
> To product description: RM-88-N
> To product description: RM-88-N-O
> To product selection: Feedback

description file edition
RM-88-N:
Combinations of s88-standard connections and bus connections according to
s88-N via patch cable
page_1781 03/2020
Feedback via various kind of contacts page_673 03/2020
Feedback from Reflex Optical Sensor REF-LIS (SOFTLOK) page_674 03/2020
Combine existing RM-DEC-88 with RM-88-N (1) page_1122 03/2020
Combine existing RM-DEC-88 with RM-88-N (2) page_1123 03/2020
RM-88-N-O:
Combinations of s88-standard connections and bus connections according to
s88-N via patch cable
page_1780 03/2020
Feedback via various kind of contacts (digital voltage supply) page_672 03/2020
Feedback via various kind of contacts (DC voltage supply) page_1766 03/2020
Feedback from Reflex Optical Sensor REF-LIS (SOFTLOK) page_676 03/2020
Feedback from Hall generator (e.g. TLE 49xx) page_1110 03/2020
Combine existing RM-DEC-88-O with RM-88-N-O (1) page_1124 03/2020
Combine existing RM-DEC-88-O with RM-88-N-O (2) page_1125 03/2020

Subject to technical changes and errors.
© 2020 by LDT
Märklin and Motorola are registered trade marks.
