LS-DEC-NMBS

Light-Signal Decoder for light signals of the Nationale Maatschapping of the Belgian Spoorwegen (NMBS)

for signals equipped with LED (light emitting diodes) for the data formats Märklin-Motorola and DCC from our Digital-Professional-Series !

The Light-Signal Decoder LS-DEC-NMBS can perform a realistic control of up to 4 signals of the Nationale Maatschapping of the Belgian Spoorwegen (NMBS).

Features of the LS-DEC-NMBS

Realistic switching of light-signals via accessory addresses:

  • With the Light-Signal Decoder LS-DEC is it possible to switch light signals via accessory addresses. Ideal for Digital Central Units which are switching turnout tracks and Model Railway Layouts which are controlled by PC and control software. The signal wiring will be simply connected to the signal-module by practical and secure clamps.

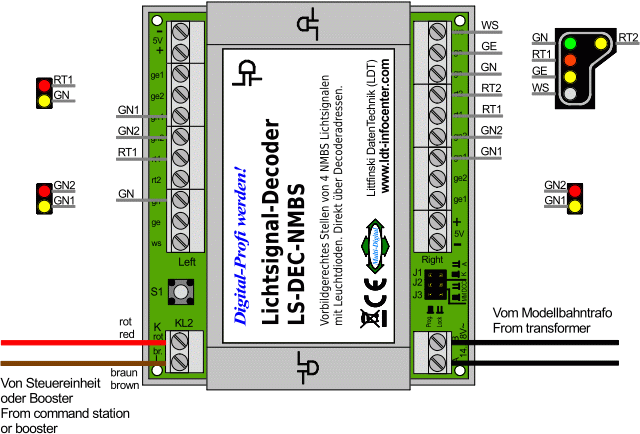

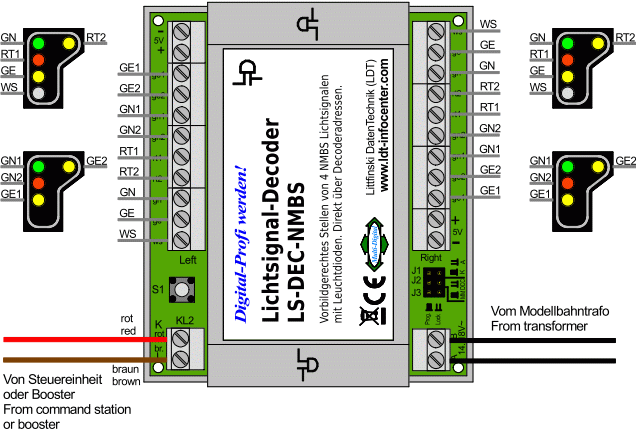

  • With just one Light-Signal Decoder LS-DEC-NMBS is it possible to control up to four main signals (two signals with 5 and two signals with 4 lamps) or four shunting signals.

  • Signal aspects will not simply be cross faded but as realistic the prior aspect will be firstly dimmed and after a short dark phase the new signal aspect will appear. The light emitting diodes will be dimmed up and down during this process.

above: conventional signal change by simple switching. below: realistic signal change with dim- and dark phase with the Light-Signal Decoder LS-DEC.

  • With integrated series resistor for the light emitting diodes.
  • Suitable for all LED-light signals with common anode or common cathode.
  • The signal current has not necessarily to be supplied by a booster but can be directly feeded into a separate input from a model railroad transformer. This saves expensive digital current.
  • By using a connector plug you can choose if you want to operate the decoder on a Märklin-Motorola system or on a digital system with the DCC Standard.
  • Decoder of the Digital-Professional-Series can be used on your digital system without any problems because they are compatible to the Märklin-Motorola-Data format respectively to the DCC Standard.
  • The finished module and the finished module in a case comes with 24 month warranty.
  • Each decoder LS-DEC-NMBS will be supplied with a detailed operating-/respectively assembly-instruction.
  • You can purchase the Light-Signal Decoder as a kit (-B), as tested finished module (-F) or as tested finished module in a case (-G). Suitable assembly material for the kit or the finished module is available under Accessories.

Downloads

Instructions regarding this article can be found here: Downloads LS-DEC-NMBS.
Instructions for all LDT-Components can be found here: Overview Downloads.

Sample-Connections

Sample-connections regarding this article can be found here: Sample-Connection LS-DEC-NMBS.
Sample-connections for all LDT-Components can be found here: Overview Sample-Connections.

Digital-Compendium

A Digital-Compendium to this article can be found here: Digital-Compendium LS-DEC-NMBS.
An overview for all Digital-Compendium articles can be found here: Overview Digital-Compendium

Add to Wish List / Prices

Attention: Products can only be added to the Wish List, if you are registered as customer at the LDT WebShop or if you are initially registered by interest of our products.


Add to Wish List: LS-DEC-NMBS-B (Part-No.: 518011): Light-Signal Decoder for NMBS-Signals as
a kit (42,90 €*).
Add to Wish List: LS-DEC-NMBS-F (Part-No.: 518012): Light-Signal Decoder for NMBS-Signals as
a finished module (53,50 €*).
Add to Wish List: LS-DEC-NMBS-G (Part-No.: 518013): Light-Signal Decoder for NMBS-Signals as
a finished module in a case (56,90 €*).

* All prices incl. VAT, plus Shipping.
(All decoders are suitable for Märklin-Motorola and DCC digital-model rail roads.)

Subject to technical changes and errors.
